4.3 Inch TFT LCD Module

Introduction:

Our 4.3 Inch TFT LCD Module is an exceptional display module that has been tested extensively and is manufactured with high-quality components to ensure reliability and durability. It is designed to offer excellent color reproduction with bright and clear images, making it ideal for a wide range of applications.

Key features of the 4.3 Inch TFT LCD Module:

1. High resolution – Our module features a resolution of 480 x 272 pixels, which makes it ideal for displaying high-quality images and video content. It also features a high contrast ratio of 500:1, which provides excellent display performance in a wide range of lighting conditions.

2. Wide viewing angle – Our module has a viewing angle of up to 80 degrees, which ensures that the display can be comfortably viewed from a range of different angles. This feature is particularly useful for products that may be viewed from multiple angles or for products that require a wide field of view.

3. Easy to integrate – Our 4.3 Inch TFT LCD Module is designed to be easy to integrate with a wide range of products. It features a compact form factor that makes it easy to fit into a range of different enclosures, and it also features a standard interface, making it easy to connect to other electronic components.

4. Low power consumption – Our module is designed to be energy efficient, which means that it consumes minimal power. This feature is particularly useful for products that are battery-powered or for products that need to operate for extended periods without a power source.

5. High-quality construction – Our 4.3 Inch TFT LCD Module is manufactured using high-quality components to ensure reliability and durability. It is designed to withstand the rigors of everyday use and can operate reliably in a wide range of environmental conditions.

Applications:

Our 4.3 Inch TFT LCD Module is ideal for a wide range of applications, as it provides excellent display performance and can be easily integrated into a variety of different products. Some of the most common applications for this module include:

1. Electronic devices – Our module is a popular choice for electronic devices such as portable gaming consoles, digital cameras, and medical devices. It is ideal for applications that require a high-resolution display with a wide viewing angle.

2. Industrial equipment – Our module is also well suited for use in industrial equipment such as manufacturing machinery, process control systems, and automation equipment. Its durability and reliability make it ideal for use in harsh industrial environments.

3. Automotive applications – Our module is a popular choice for use in automotive applications such as car navigation systems, in-car entertainment systems, and vehicle diagnostics. Its compact form factor and energy-efficient design make it ideal for use in cars and other vehicles.

Conclusion:

Our 4.3 Inch TFT LCD Module is a high-quality display module that is designed to provide excellent display performance in a wide range of applications. Its high resolution, wide viewing angle, and easy integration make it an ideal choice for a wide range of products, from electronic devices to industrial equipment and automotive applications. If you are looking for a reliable and durable display module for your product, the 4.3 Inch TFT LCD Module is an excellent choice.

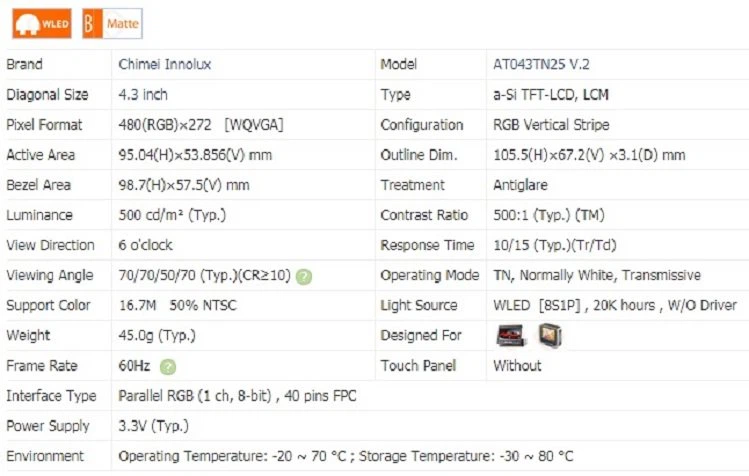

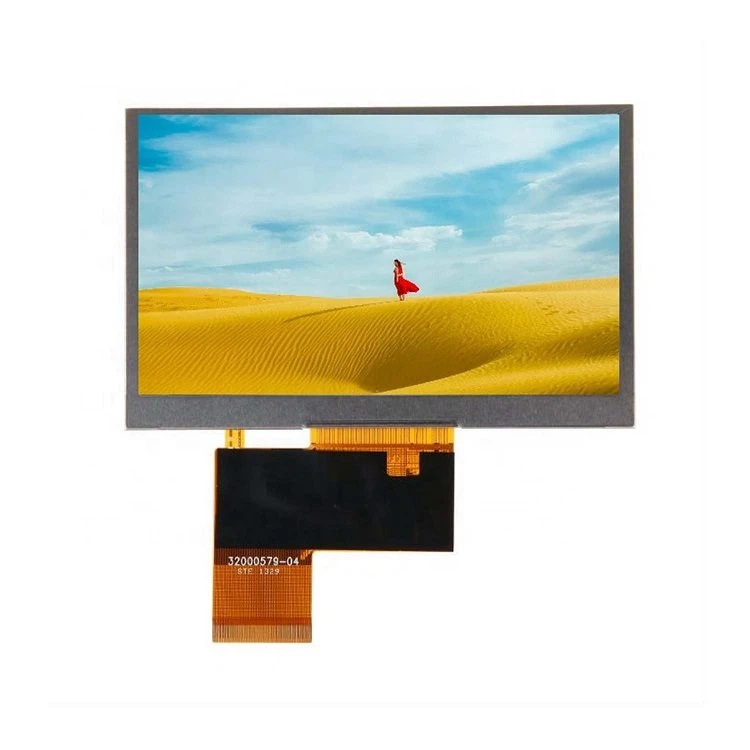

Chimei Innolux's AT043TN25 V.2 (also known as AT043TN25 V2) is a 4.3 inch LCD module product using a-Si TFT-LCD technology, equipped with WLED backlight, no backlight drive, and no touch.

Its typical features are: white LED backlight, surface fog, 2 in 1 FPC. Its working temperature is -20~70 ° C, and its storage temperature is -30~80 ° C. This model is suitable for use in car displays and portable navigation devices.

AT043TN25 V.2 display resolution is 480 (RGB) × 272 (WQVGA), with a aspect ratio of 16:9 (width: height), and pixels arranged in RGB vertical stripes. Its display area size is 95.04 × 53.856 (width × Height) mm, visible size is 98.7 × 57.5 (width × Height: mm, appearance size: 105.5 (width) × 67.2 (high) × 3.1 (thick) mm, with a misted surface treatment, the net weight of the product is 45.0g (Typ.).

In terms of backlight, this product adopts an 8S1P WLED side entry light source, with a lifespan of 20K hours and no backlight driver. AT043TN25 V.2 uses a Parallel RGB (1 ch, 8-bit) signal interface, with a total of 40 pins, FPC connection, and a screen voltage of 3.3V (Typ.). Its typical vertical refresh rate Fv is 60Hz.

Product Application:

INNOLUX 4.3 inch tft lcd module AT043TN25 V.2 can be widely used in car audio, machine control panel, ATM,laptop,medical equipment,smart home and other products.

Packing Details for volume production order:
(1) Packed the LCM into ESD bag
(2) Packed the LCM+ESD bag in air bubble bag/film
(3) Put the above together into foam box
(4) Packed the foam box into a carton box to protect the LCM during transportation.
(5) Seal the carton by tape

Shipping Details:
1) Can Ship by express such as DHL, FEDEX, EMS, TNT, UPS, or by Sea, by air, it's depends on your
requirement.(The express shipping time is about 3 to 7 working days.)
2) The tracking number will be informed after 1-3 working days the package delivered.
3) We will follow the shipment info after delivering. If you can't receive the goods on time, please contact with us, we will assist to find the solution as soon as possible.

Company qualification：

Our company has focused on LCD panel industry for more than 10 years.We can provide customers with professional and perfect LCD display solutions.

Our TFT-LCD panel are widely used in consumer electronics, vehicle, security, industrial control, medical instruments, monitoring, instrumentation, industrial automation and other industries.

We are a special dealer of Innolux,professional sales of all Innolux lcd screens and modules.Our customers are all over the world,.We can providing the best products and services for all customers.

Innolux is one of the most professional LCD screen manufacturers in the world,belongs to Foxconn Group.Innolux was founded in 2003 and went public in Taiwan in 2006. In March 2010, its merger with Chi Mei Optoelectronics and TPO Displays marked the largest merger in the history of the panel industry.

Why choose us?

• We value our customers' feedback and use it to continuously improve our products and services.
• Our product styles are diversified, and product categories are digitized.
• We are a Chinese factory that specializes in high-quality TFT-LCDs for consumer electronics.
• Now the competition in this field is very fierce; but we will still offer best quality, reasonable price and most considerate service in an endeavor to achieve win-win goal.
• Our team is committed to continuous improvement, ensuring that we stay at the forefront of our industry.
• Our company will continue to adhere to the quality policy, in the future development process, will continue to give play to its own advantages, product quality as the concept, the market as the guide, focusing on the creation of domestic famous 4.3 Inch TFT LCD Module excellent brands, and is willing to sincerely cooperate with new and old customers. ,Create a better future.
• We are committed to using only the highest quality materials in our products.
• With state-of-the-art technologies and facilities, strict good quality regulate, reasonable cost, exceptional assistance and close co-operation with prospects, we're devoted to supplying the top benefit for 4.3 Inch TFT LCD Module.
• We are committed to providing exceptional customer service, ensuring that our customers are satisfied with their experience.
• We continue to introduce the old and bring forth the new, benefit every new and old customer, and provide users with comprehensive technical services and support.
